DecorRope™

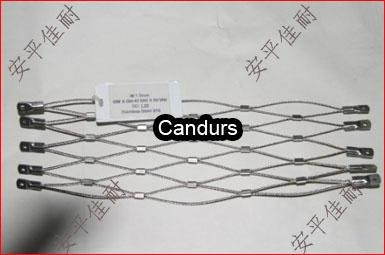

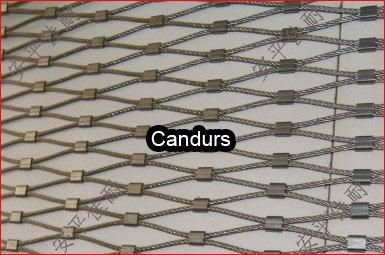

DecorRope™ stainless steel mesh is assembled by seamless ferrules and stainless steel wire rope.Diamond mesh when it is stretched at 60°(optimal) angle.3D-structure.flexibility.

The stainless steel cable is used top quality all of world,tight structure,smooth surface,high tensile,high loading capacity,rust resistant.

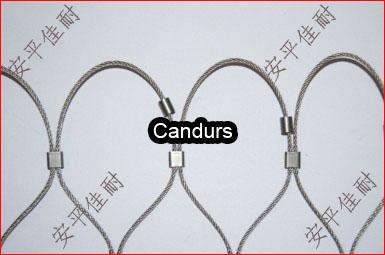

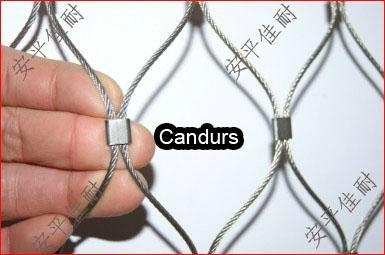

The benefit of seamless wire rope ferrules offers high break capacity, smooth surface, reduce the potential rust posibility.

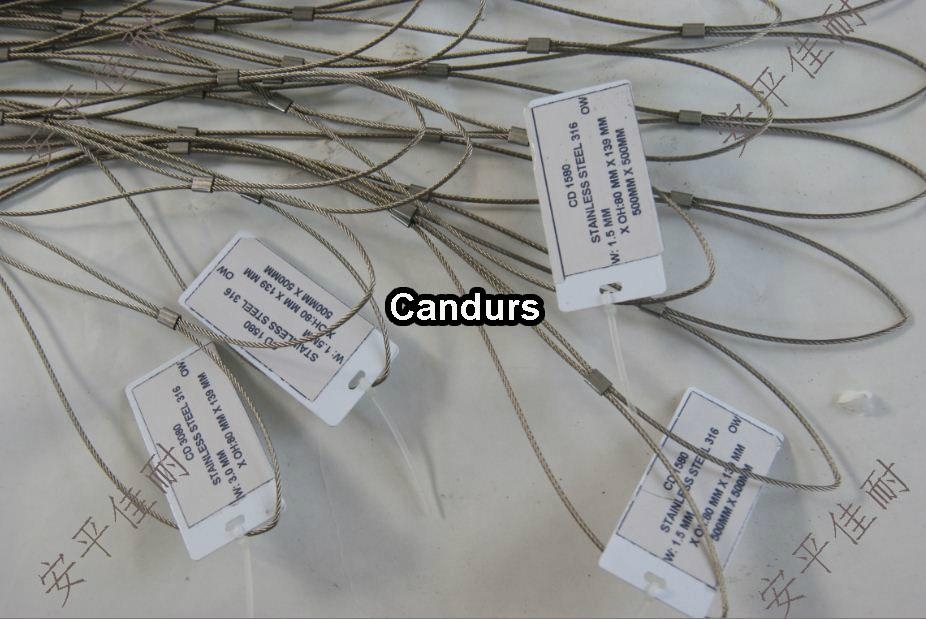

Candurs DecorRope stainless wire rope mesh was made by machine,smooth surface. cleanly production line.

Available : AISI 316 stainless steel

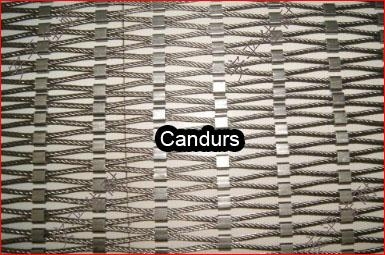

In order to meet vareity architectural application,when change the stainless steel cable mesh structure or stretch angle, new different mesh pattern is issued.

DecorRope-C

DecorRope- H

Black Oxide

Edge Finish:

DecorRope Stainless steel cable mesh is easily install on rod or tube frame and tensioned cables with suitable border design.Available No. 30 different edge patterns design.from L1-L30.

Catalog : DecorRope (.PDF)

Border Pattern L1 - L30 (.PDF)

Certification: CE

Solution: frame systems.color finish

Easily Order:  AISI 316/304 Product No. – Orientation – Edge Pattern – Piece Size

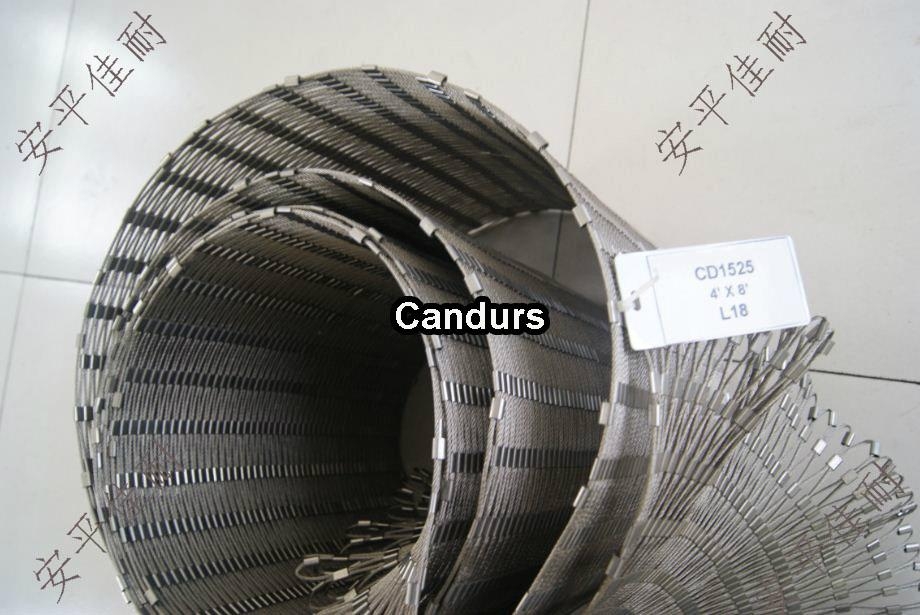

e.g.: 316 – CD1560 – H – L18 – 2m x 1m. Ask a price.

Ask free samples

AISI 316 Stainless steel net: stainless steel ferrules and stainless steel cable.

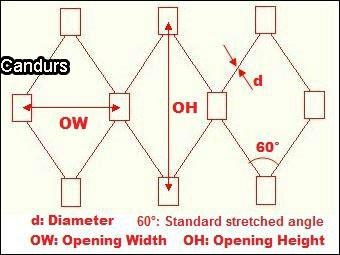

Product No.

MBL (kg)

Ø (mm)

OW (mm)

OH (mm)

Weight (kg/m2)

CD1020

0.6

1.0

20

35

0.85

CD1025

0.6

1.0

25

43

0.64

CD1030

0.6

1.0

30

52

0.53

CD1035

0.6

1.0

35

61

0.40

CD1040

0.6

1.0

40

69

0.36

CD1050

0.6

1.0

50

87

0.27

CD1060

0.6

1.0

60

104

0.22

CD1070

0.6

1.0

70

121

0.18

CD1080

0.6

1.0

80

139

0.15

CD1525

1.4

1.5

25

43

1.59

CD1530

1.4

1.5

30

52

1.3

CD1535

1.4

1.5

35

61

0.99

CD1540

1.4

1.5

40

69

0.88

CD1550

1.4

1.5

50

87

0.65

CD1560

1.4

1.5

60

104

0.52

CD1570

1.4

1.5

70

121

0.42

CD1580

1.4

1.5

80

139

0.36

CD15100

1.4

1.5

100

173

0.28

CD15120

1.4

1.5

120

208

0.23

CD15140

1.4

1.5

140

242

0.19

CD15160

1.4

1.5

160

277

0.17

CD15180

1.4

1.5

180

312

0.06

CD15200

1.4

1.5

200

346

0.03

CD2040

2.5

2.0

40

69

1.51

CD2050

2.5

2.0

50

87

1.12

CD2060

2.5

2.0

60

104

0.9

CD2070

2.5

2.0

70

121

0.73

CD2080

2.5

2.0

80

139

0.62

CD20100

2.5

2.0

100

173

0.49

CD20120

2.5

2.0

120

208

0.41

CD20140

2.5

2.0

140

242

0.34

CD20160

2.5

2.0

160

277

0.3

CD20180

2.5

2.0

180

312

0.1

CD20200

2.5

2.0

200

346

0.05

CD3050

5.2

3.0

50

87

2.82

CD360

5.2

3.0

60

104

2.24

CD3070

5.2

3.0

70

121

1.8

CD3080

5.2

3.0

80

139

1.51

CD30100

5.2

3.0

100

173

1.19

CD30120

5.2

3.0

120

208

0.97

CD30140

5.2

3.0

140

242

0.81

CD30160

5.2

3.0

160

277

0.7

CD30180

5.2

3.0

180

312

0.24

CD30200

5.2

3.0

200

346

0.1
