Woven Rope Mesh

Wovenrope™  stainless steel cable mesh also called hand woven rope mesh,   weaving by stainless steel wire ropes, Square mesh when you stretched at 90 degree angle.Ropes diameter: from 1.2mm - 3.0mm
Rope Structure: 7x7,7x19

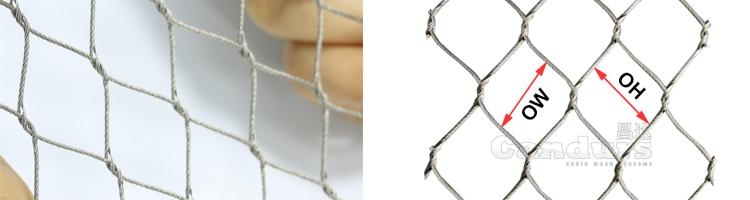

Mesh size: Opening width ( OW ) from 20mm - 120mm,opening height ( OH ) from 20mm - 120mm
Customized rope mesh width and length

Mesh Orientation

Borders:

WovenRope Stainless steel cable mesh is easily install on rod or tube frame and tensioned cables with suitable edge design.Candurs provide No.08 different edge patterns design.

Catalog: WovenRope (.PDF)

Border Design: E01-E08

Solutions: Framed systems ,colored finish

Easily Order:  AISI 316/304 Product No. – Orientation – Edge Pattern – Piece Size(WXH)
e.g.: 316 – WE1225 – H – E01 – 2m(W) x 1m(H). Ask a price

 Ask free samples

WovenRope stainless steel mesh:stainless steel cable woven by hand

Product No.

Ø mm

OW X OH (mm)

Norninal Break (lbs.)

WD30120

3.0

120 x 120

1,600

WD30102

3.0

102 x 102

1,600

WD3090

3.0

90 x 90

1,600

WD3076

3.0

76 x 76

1,600

WD3050

3.0

51 x 51

1,600

WD25102

2.5

102 x 102

920

WD2590

2.5

90 x 90

920

WD2576

2.5

76 x 76

920

WD2560

2.5

60 x 60

920

WD2551

2.5

51 x 51

920

WD2076

2.0

76 x 76

676

WD2060

2.0

60 x 60

676

WD2051

2.0

51 x 51

676

WD2038

2.0

38 x 38

676

WD1576

1.5

76 x 76

480

WD1551

1.5

51 x 51

480

WD1538

1.5

38 x 38

480

WD1530

1.5

30 x 30

480

WD1525

1.5

25 x 25

480

WD1238

1.2

38 x 38

270

WD1230

1.2

30 x 30

270

WD1225

1.2

25 x 25

270
