Welded Wire Cloth

Welded wire cloth is level and flat in surface with sturdy structure. Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence etc
Material: Galvanized iron wire,black iron wire,rebar steel wire,stainless steel wire.
Surface treatment: Hot dipped galvanized,electro galvanized ,PVC coated
Feature:
Tight structure
Accurately aperture
Flat surface
Long using time

 Stainless steel welded wire cloth

Type:
304 Stainelss steel

316 Stainless steel

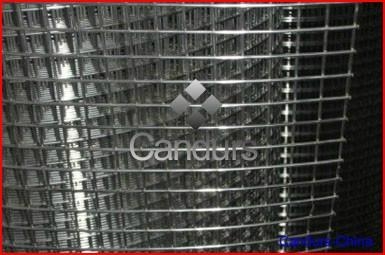

Galvanized Welded Wire Cloth:

Type:
Electro galvanized before welding

Electro galvanized After welding

Hot dipped galvanized before welding

Hot dipped galvanized after welding

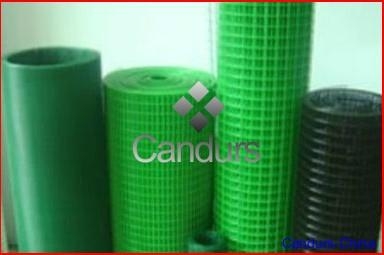

 PVC coated welded wire cloth

Type:

PVC coated + electro galvanized

PVC coated + Hot dipped galvanized



Specification List

Spacing

Wire Gauge

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note:

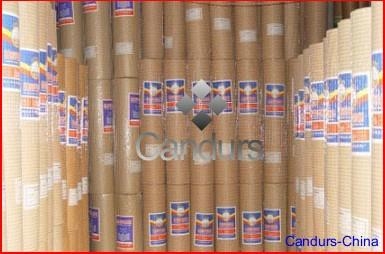

1,Standard roll length: 30m;width: 0.5m to 1.8m ,2.Cut width and length
