Expanded Metal Grating

Expanded metal grating is a heavy-duty typed expanded metal, which is slit and expanded in a cold-drawing operation. Designed especially for use as a lightweight open steel flooring, is ideal for flooring, catwalks, platforms and stair treads, where principal use is for light storage and foot traffic. It's low cost and light weight, combined with high strength, make for a most economical construction.

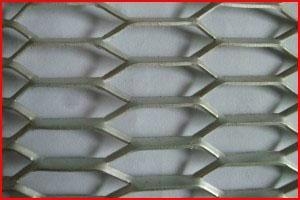

 Mesh style: Diamond,Square,Hexagonal

Surface : Raised and Flattened mesh type

Finished: Mill,Powder coated

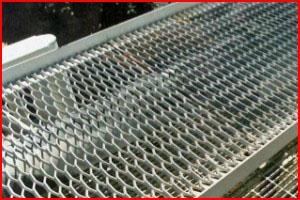

Expanded Grating
Expanded Grating Stair Treads
 Expanded metal grating specification:

Plate Thickness (mm)

            SWM         (MM)

                       LWM        (MM)

Strand Width (mm)

Width

Length (mm)

4

22

50

4

1500-2500mm

4000

24

60

4.5

4000

32

80

5

5000

40

100

6

5000

46

120

8

4000

4.5

24

60

4.5

4000

32

80

5

5000

40

100

6

5000

46

120

8

4000

5

24

60

5

3500

32

80

6

4000

40

100

8

3500

46

120

8

4000

56

150

8

5000

6

32

80

6

4000

40

100

7

4000

46

120

7

5000

56

150

8

5000

7

40

100

7

4000

46

120

8

4000

56

150

10

4000

8

40

100

8

3500

46

120

10

3500

56

150

12

3500

Customized metal grating size
