Flexible Stainless Steel Rope Mesh Ferrule Type

Model No.︰

DecorRope

Brand Name︰

Candurs

Country of Origin︰

China

Unit Price︰

CNY ¥ 88 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Unique design flexible stainless steel rope mesh is assembled by seamless ferrule/sleeve made from stainless steel wire rope,total 304,316 stainless steel finish. Diamond mesh style. High safety offers, Widely use for building facade, balustrade & railing systems,green wall systems,security fencing,animal enclosure,bird protection net etc.

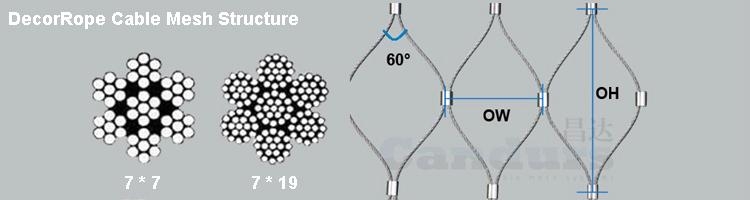

DecorRope Mesh Structure

Easily Order

1. Stainless Steel Wire Rope

Available AISI 304 and 316 stainless steel

Rope diameter : 1.0mm,1.5mm,2.0mm,3.0mm,4.0mm

2. Opening Size

Diamond mesh when it is stretched at 60° (standard ),other angle 30° - 90°

Opening size : 20mm x 35mm to 200mm x 347mm

Opening (mm)

OW X OH

Wire Diameter
1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
25 x 43 CD1025 CD1525
30 x 52 CD1030 CD1530
35 x 61 CD1035 CD1535
40 x 69 CD1040 CD1540 CD2040
50 x 87 CD1050 CD1550 CD2050 CD3050 CD4050
60 x 104 CD1060 CD1560 CD2060 CD3060 CD4060
70 x 121 CD1070 CD1570 CD2070 CD3070 CD4070
80 x 139 CD1080 CD1580 CD2080 CD3080 CD4080
100 x 173 CD10100 CD15100 CD20100 CD30100 CD40100
120 x 242 CD10120 CD15120 CD20120 CD30120 CD40120
160 x 277 CD10160 CD15160 CD20160 CD30160 CD40160
180 x 312 CD10180 CD15180 CD20180 CD30180 CD40180
200 x 346 CD10200 CD15200 CD20200 CD30200 CD40200

Available No.30 different edge pattern finish to meed different install requirement

5. Nets height and length,and Quantity.

6. Drawing is necessary if it is available

7. Other required



Lead Time︰ 10-15 days after receive the payment
Standards Certificate︰ CE
Packing︰ Package film for each piece,Several pieces packed in 1 carton or Case. (Marked for each pcs)
Without our company name or LOGO on the package.
