The Stadium Rope Net
Country of Origin︰
China
Unit Price︰
CNY ¥ 88 / pc
Minimum Order︰
1 pc
Product Description

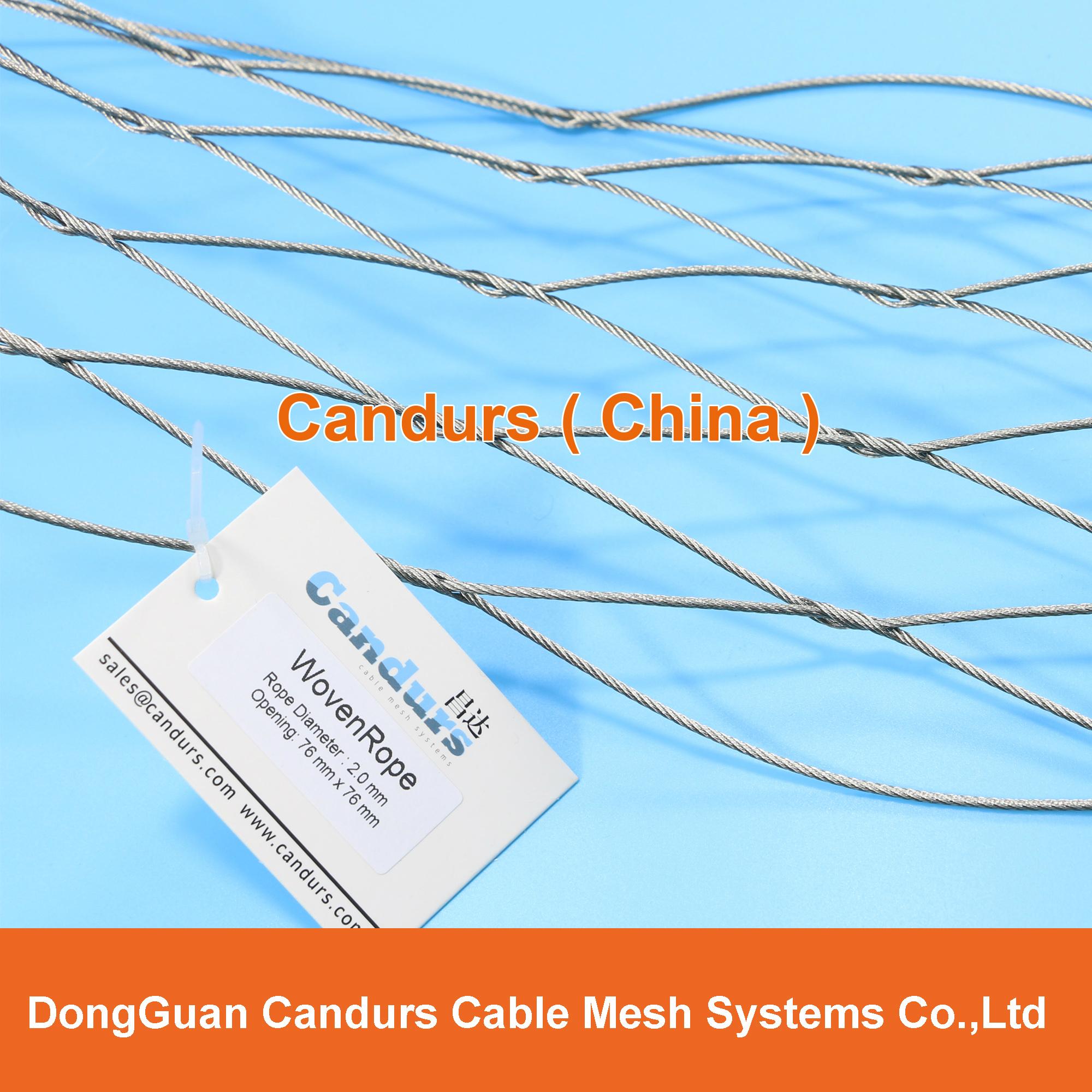

China The Stadium Rope Net manufacturer,factory,Candurs's Wovenrope™ stainless steel hand woven rope mesh diamond opening when you stretched at 90 degree angle,unique design, widely use as security fencing, security screens, Animal cage, safe net etc.
- Feature of The Stadium Rope Net:
- Unique design idea
- Flexible,elegant,discreet,filigreed,multifunctional
- Light
- Corrosion resistant,allows heavy airflow
- Total pro-environment,recyclable,no toxic,non-flammable
- Once stainless steel cable mesh was installed,maintenance free,don't ask any special cleaning or coating
- Long using life
Available 304 and 316 stainless steel.
Ropes diameter: from 1mm - 4mm
Structure: 7x7,7x19
Mesh size: Opening width ( OW ) from 20mm - 120mm,opening height ( OH ) from 20mm - 120mm
Variety of loops solution
Customized cable mesh width and length
Easily install,stainless steel rope mesh can be fixed on stainless steel tube (frame) or tensioned with stainless fitting.
Standard Specification:
OW X OH | Wire Diameter | ||||
1.2 mm | 1.6mm | 2.0 mm | 2.4 mm | 3.2 mm | |
25 mm x 25 mm | WD1225 | WD1625 | |||
30 mm x 30 mm | WD1230 | WD1630 | |||
38 mm x 38 mm | WD1238 | WD1638 | WD2038 | ||
51 mm x 51 mm | WD1251 | WD1651 | WD2051 | WD2451 | WD3251 |
60 mm x 60 mm | WD1260 | WD1660 | WD2060 | WD2460 | WD3260 |
76 mm x 76 mm | WD1276 | WD1676 | WD2076 | WD2476 | WD3276 |
90 mm x 90 mm | WD1290 | WD1690 | WD2090 | WD2490 | WD3290 |
102 mm x 102 mm | WD12102 | WD16102 | WD20102 | WD24102 | WD32102 |
120 mm x 120 mm | WD12120 | WD16120 | WD20120 | WD24120 | WD32120 |
Packing︰ Roll,Piece
