Flexible Stainless Steel Wire Mesh Railing Infill Panels

Model No.︰


Brand Name︰


Country of Origin︰


Unit Price︰


Minimum Order︰


Share on:

Product Description

CustomizedInox cable mesh tubular frames for balustrade,railing systems,easily install.supplied rectangular and rhombic inox mesh tubular frames panel


  1. Wear and abrasion resistant
  2. Competitive cost
  3. Easy self installation
  4. Attractive and innovative design
  5. Alternative to infill,like bars,metal sheet and glass
  6. Long using time
  7. Made in china

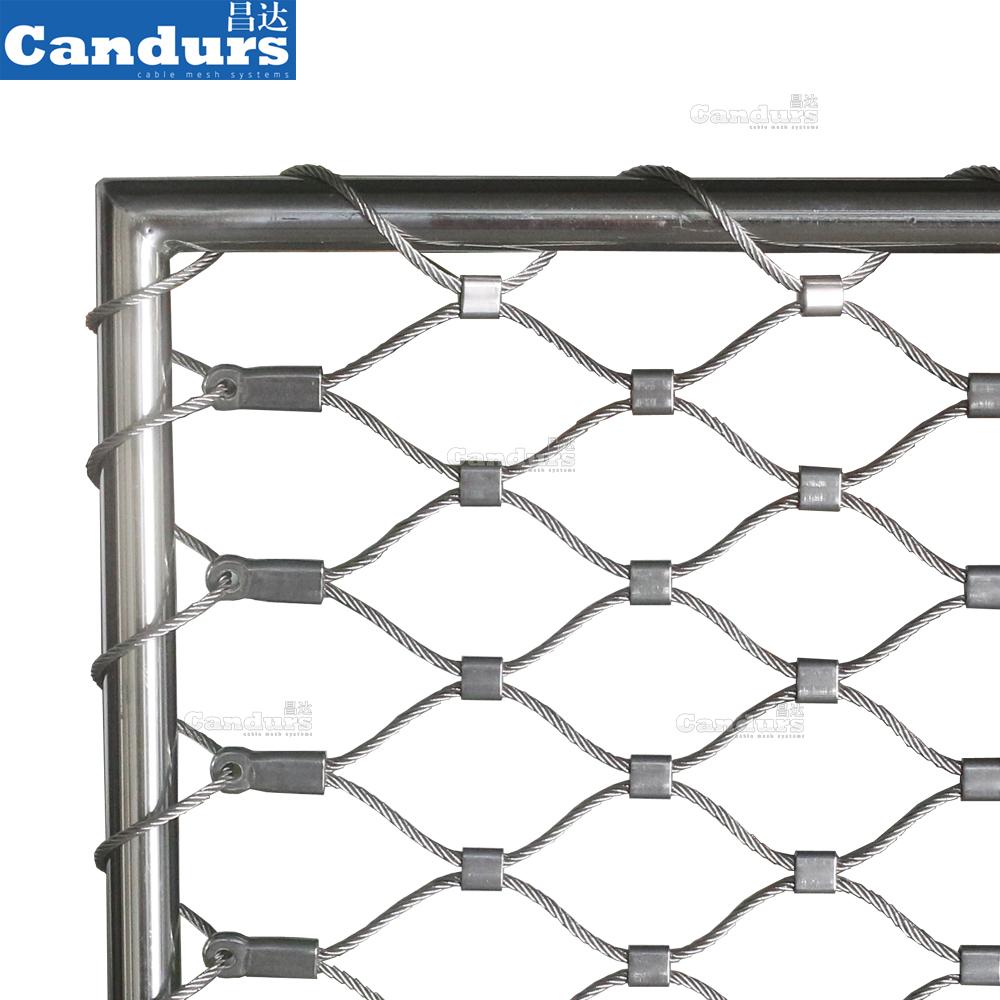

Inox cable mesh tubular frame was made up of SS tube elements with stretched inox cable net Stainless tube has stain finished, conners are welded.ss mesh made from high strength cables(construction 7 * 7) that offer a minimalist solution.

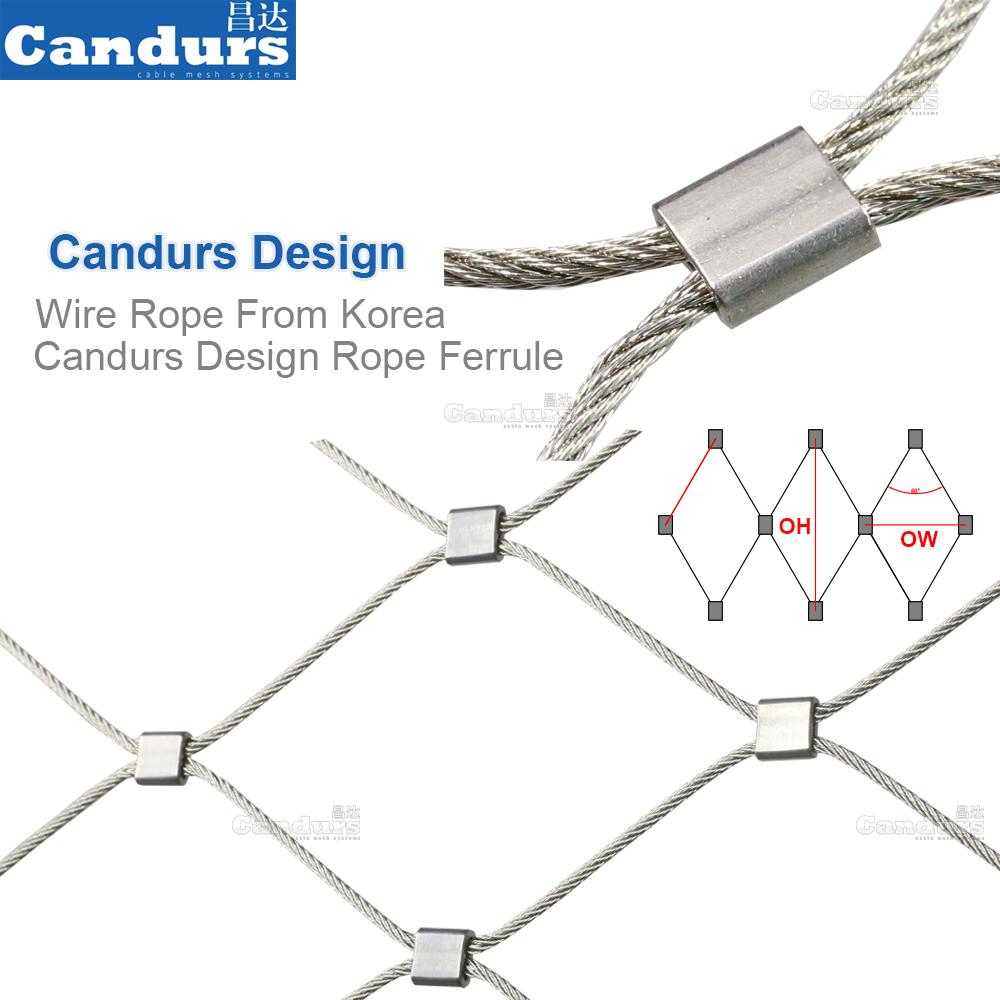

Flexible Stainless steel wire rope mesh was assembled by 316 grade stainless steel seamless ferrules and wire ropes,finished diamond mesh style when you stretched at 60 angle,rope diameter 1.5mm and 2.0mm,Opening width 40mm,60mm,80mm,other on demand.

Cusotmized 316 grade SS tube frame, available round tube diameter 16.9mm,21.3mm,26.9mm,thickness 1.6mm,2.0mm,square tube 20mm , 30mm.and other type of tube

Customized square and inclined (angle 29-37°) tubular frames panel size. Finished correct dimension at factory,stainless steel fitting was used for fixing to post,floor,wall or hand rail.

Lead Time︰ 15 days after payment
Standards Certificate︰ CE

Product Image

Wire Mesh Railing PanelsWire Mesh Railing Panels

Mesh StructureMesh Structure

Mesh OrientationMesh Orientation

Wire Mesh Railing PanelsWire Mesh Railing Panels
