316 Stainless Steel Socket Hex Bolt

Brand Name︰

Candurs

Country of Origin︰

Chile

Minimum Order︰

50 pc

Share on:

Product Description

Stainless Steel Socket Hex Bolt

Material 316 Stainless Steel

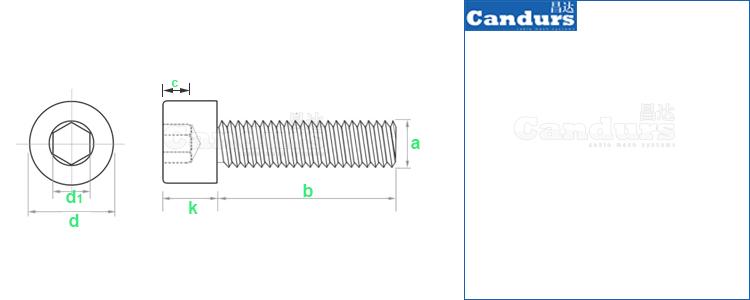

Product Code a Thread Pitch b (mm) d (mm) d1 (mm) k (mm)
min max min max min  max
604-03 M3 0.5 5mm - 30mm 5.32 5.68 2.52 2.58 2.86
604-04 M4 0.7 6mm - 30mm 6.78 7.22 3.02 3.08 3.82
604-05 M5 0.8 8mm - 30mm 8.28 8.72 4.02 4.095 4.82
604-06 M6 1 10mm-140mm 9.78 10.22 5.02 5.14 5.7
604-08 M8 1.25/1 12mm-150mm 12.73 13.27 6.02 6.14 7.64
604-10 M10 1.5/1.25/1 16mm-150mm 15.73 16.27 8.025 8.175 9.64  10
604-12 M12 1.75/1.5/1.25 20mm-150mm 17.73 18.27 10.025 10.18 11.57  12
604-14 M14 2/1.5 25mm-150mm 20.67 21.33 12.032 12.21 12.57  14
604-16 M16 2/1.5 25mm-160mm 23.67 24.33 14.032 14.21 15.57  16
604-18 M18 2.5/2/1.5 30mm-120mm 26.67 27.33 14.032 14.21 17.57  18
604-20 M20 2.5/2/1.5 40mm-90mm 29.67 30.33 17.05 17.23 19.48  20





Product Image

Socket Hex BoltSocket Hex Bolt

Socket Hex BoltSocket Hex Bolt
