16 mm Oval Stainless Steel Wire Sleeve Crimp
Model No.︰
101-0140
Brand Name︰
Candurs
Country of Origin︰
China
Unit Price︰
US $ 4 / pc
Minimum Order︰
100 pc
Product Description
Wholesales.Factory Price.16 mm Seamless Oval Stainless Steel Wire Sleeve Crimp For Wire Rope Aling,Architectural Application.Available AISI 316 Stainless Steel Grade.Smooth Surface.Quickly Delivery.
Product No. | 101-0160 |
A: 35 mm, B: 17.5 mm, K:6.7 mm, L: 56 mm | |
Standard | DIN 3093 |
Material | AISI 316 Stainless Steel |
Rope Diameter8 | 16 mm Stainless Steel Wire Rope Crimps |
Applicatioin | For sling,architectural. |
Specification: | |||||
Product No. | For Rope | A (mm) | B (mm) | K (mm) | L (mm) |
101-0010 | 1.0 mm | 2.4 | 1.2 | 0.65 | 5 |
101-0015 | 1.5 mm | 3.4 | 1.7 | 0.75 | 6 |
101-0020 | 2.0 mm | 4.4 | 2.2 | 0.85 | 7 |
101-0025 | 2.5 mm | 5.4 | 2.7 | 1.05 | 9 |
101-0030 | 3.0 mm | 6.6 | 3.3 | 1.28 | 11 |
101-0035 | 3.5 mm | 7.6 | 3.8 | 1.5 | 13 |
101-0040 | 4 mm | 8.8 | 4.4 | 1.7 | 14 |
101-0045 | 4.5 mm | 9.8 | 4.9 | 1.9 | 16 |
101-0050 | 5 mm | 11 | 5.5 | 2.1 | 18 |
101-0060 | 6 mm | 13.2 | 6.6 | 2.5 | 21 |
101-0065 | 6.5 mm | 14.4 | 7.2 | 2.7 | 23 |
101-0070 | 7 mm | 16.5 | 7.8 | 2.9 | 25 |
101-0080 | 8 mm | 17.6 | 8.8 | 3.3 | 28 |
101-0090 | 9 mm | 19.8 | 9.9 | 3.7 | 32 |
101-0100 | 10 mm | 21.8 | 10.9 | 4.1 | 35 |
101-0110 | 11 mm | 24.2 | 12.1 | 4.5 | 39 |
101-0120 | 12 mm | 26.4 | 13.2 | 4.9 | 42 |
101-0130 | 13 mm | 28.4 | 14.5 | 5.4 | 46 |
101-0140 | 14 mm | 30.6 | 15.3 | 5.8 | 49 |
101-0160 | 16 mm | 35 | 17.5 | 6.7 | 56 |
101-0180 | 18 mm | 39.2 | 18.6 | 7.6 | 63 |
Lead Time︰
15 days after payment
Standards Certificate︰
CE
Product Image

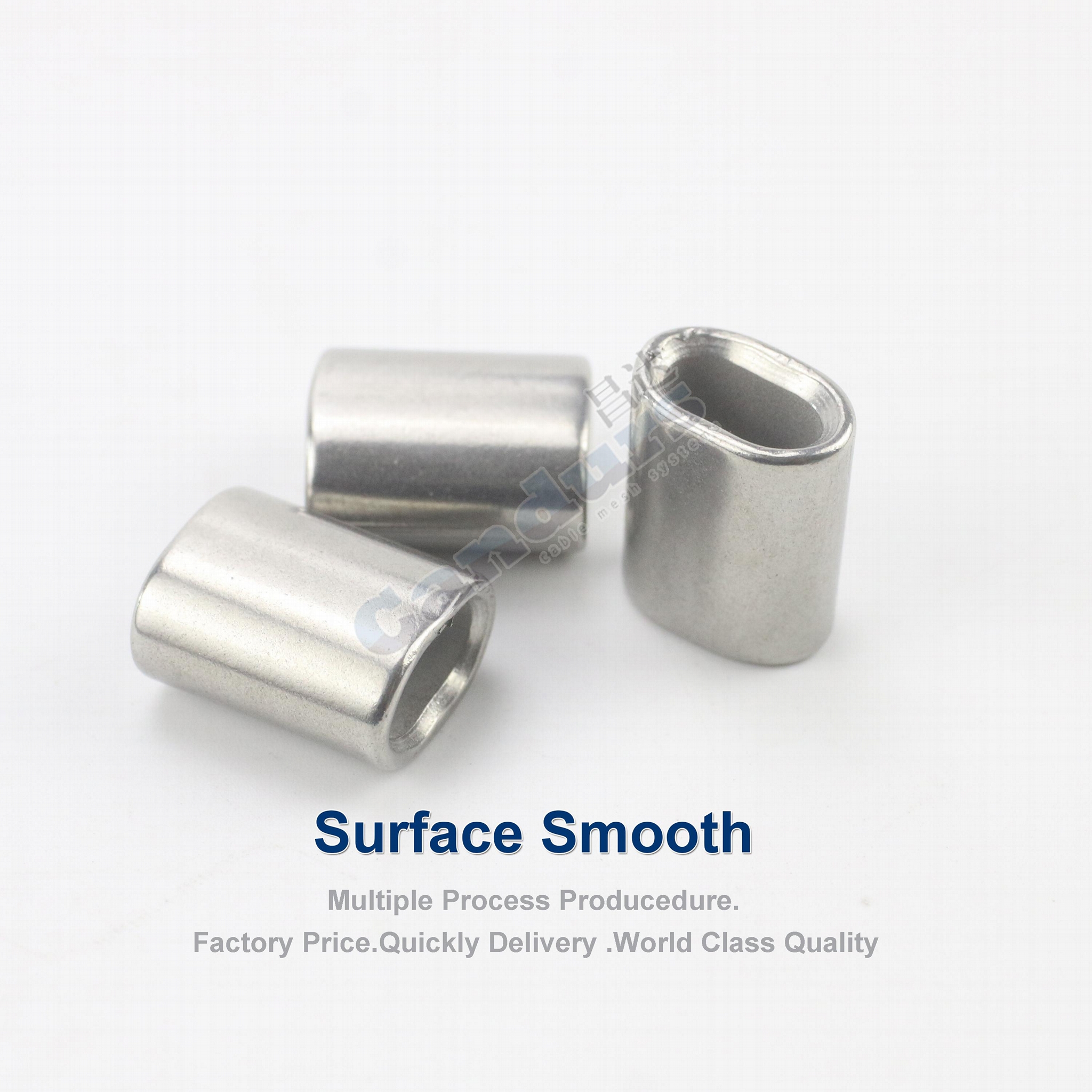

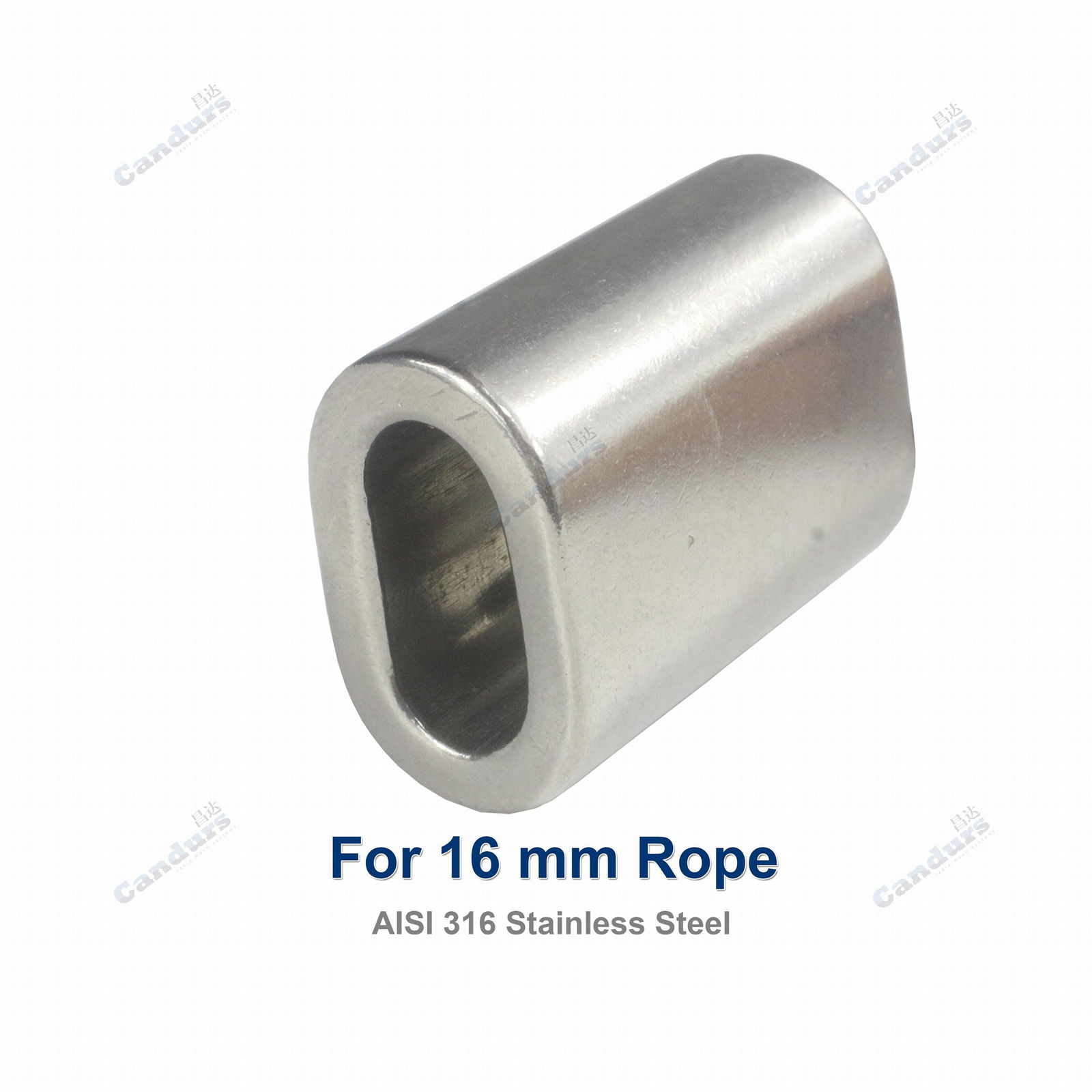

16 mm Oval Stainless Steel Wire Sleeve Crimp
